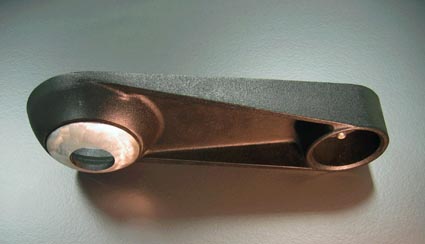

|Side- bowl Ø 150 mm
Cast aluminium, black paint.
Length : 30 cm.
Weight : 2 Kg

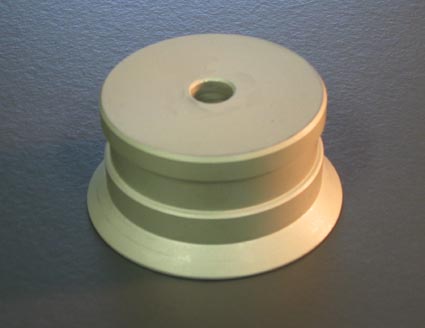

Ø 80 mm
Anodised aluminium with stainless steel insert thread M 12.
Mounting : 3 x M 8
Weight : 0,6 Kg

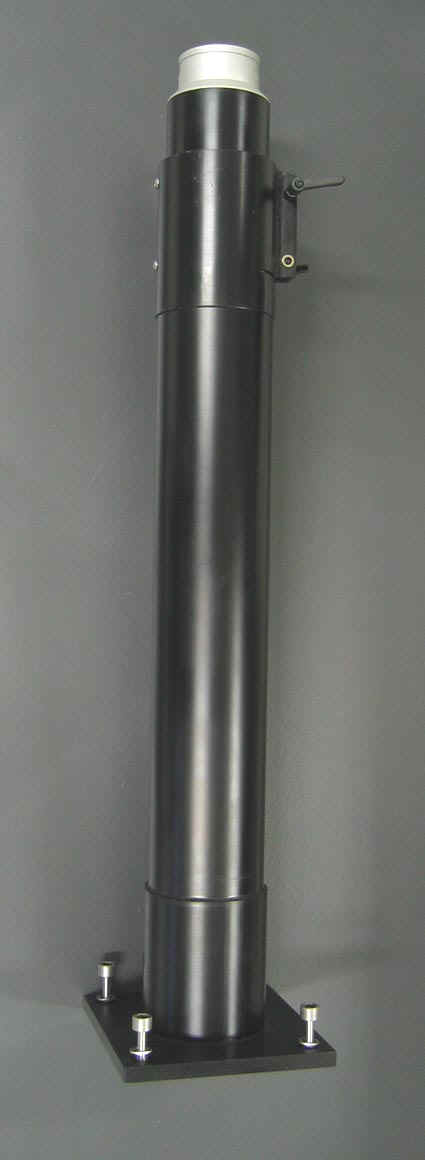

|Heavy Duty Column
Black anodised aluminium,adjustable between 0,9 and 1,65 m, 4 x M 12 bolts for mounting on Dolly.
Total weight : 6,5 Kg.

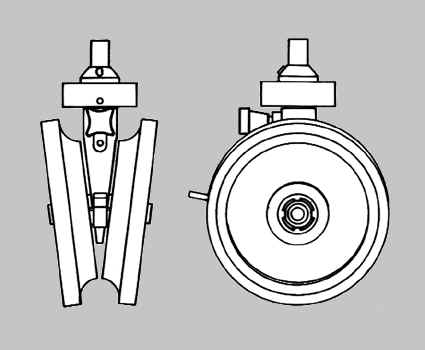

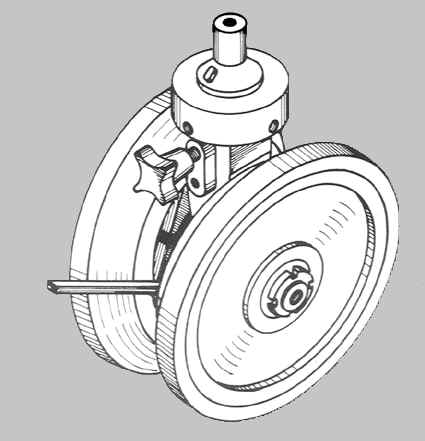

/ Floor Wheels
A set of studio wheels for all Elemack and similar dollies which can also be used on straight and curved steel and aluminium track.
The aluminium wheels have a polyurethane surface for smooth rolling, this material does not indent under heavy loads during a long time.
Quick action lever operates brakes which are also effective when the dolly is used on track.
A hand operated bolt unlocks the wheels when used on curved track,this bolt can be quickly reset back to the fixed position.
|Resetting the chains of the dolly
and re-aligning the wheels after changing them from one dolly to another, is done in a
The axle thread accepts the original Elemack locking bar type BA / S .
For more specifications please contact us.
